Product Include

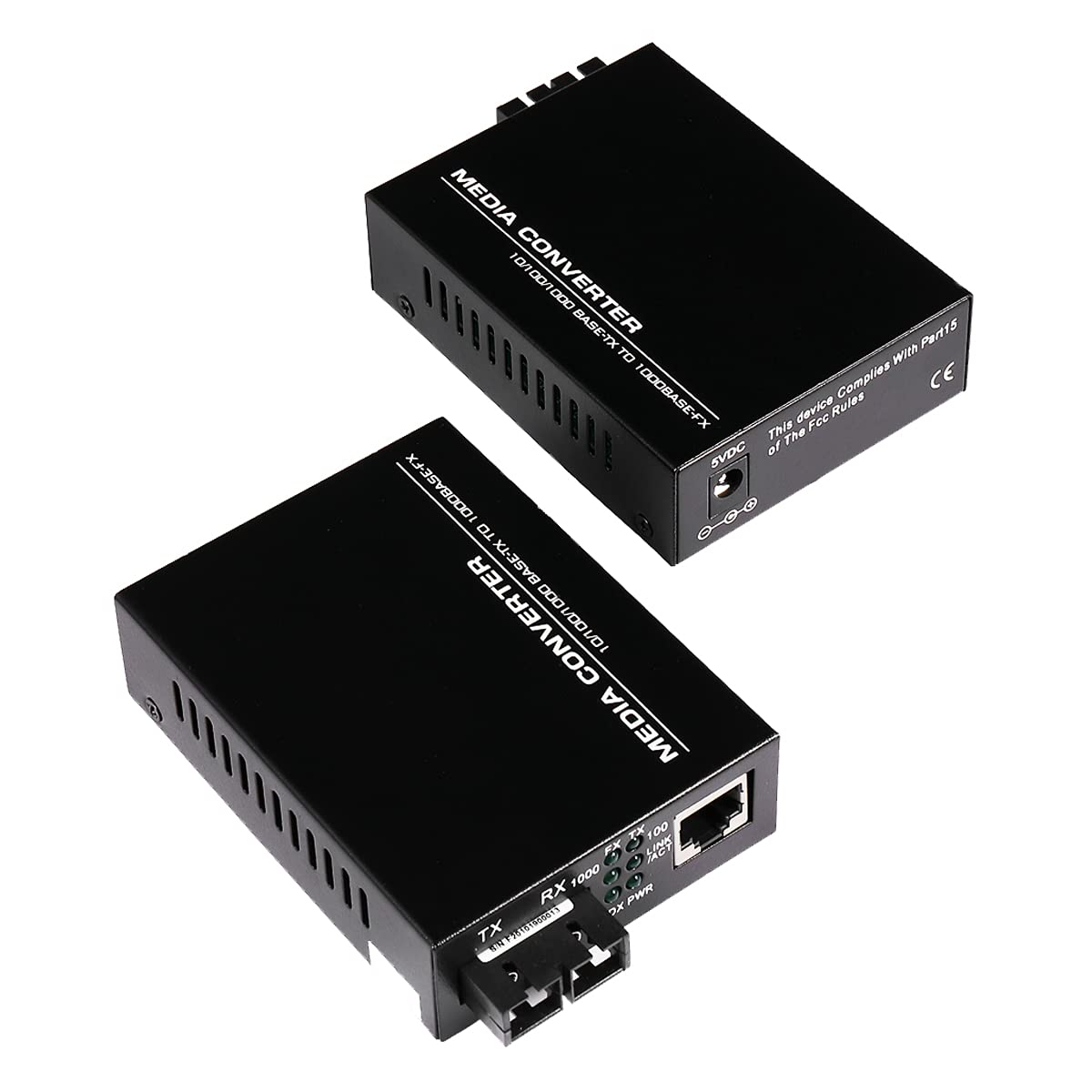

2x Dual SC Gigabit Ethernet Fiber Media Converter
2x DC Power Adapter
1x Product Manual,Multi-Language Quick Installation Guide

Feature Introduction
1.Optical Port Data Rate:1.25Gbps,10/100/1000Base-Tx to 1000Base-LX Dual SC Fiber Gigabit Media Converter.
2.Interface: Dual SC Port+RJ45 Port, RJ45 Port Data Rate: 10/100/1000M auto-negotiation.
3.Fiber Type: Single-mode, Fiber Connector: Dual SC Fiber,Wavelength: 1310nm, Reach: 20km, Included Power Supply Weight: 0.35kg.

Excellent Function
1.Super Heat Dissipation:Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2.Lightning protection.Strong anti-interference ability.High-speed and stability signal conversion.
3.Standalone design with simple plug-and-play set-up.Compact size provide more flexible installation options.Dimensions: 95 x 72 x 27mm(D xWxH).
4.Power Adapter Safety standards: UL/EN60950 GB4943.Output voltage: 5V DC/1A, Power Dissipation ≤3 watts, External Power:AC 100V~240V.
5.High-quality Conversion Chip & Easy Installation,Operating temperature: 0°C to 60°C. Storage temperature: -20°C to 70°C.Humidity: 5% to 90% RH.

Wide Applications
1.Extend or bridge networks using fiber cable.
2.Provide connectivity to users in an isolated area of a large complex or in a separate building.
3.Ideal for secure connections required by government or corporations where EMI is not acceptable.

LED Indicators
1. FP: Light on when fiber speed is 1000Mbps, else light off.
2. TP: Light on when TP speed is 1000Mbps, else light off.
3. Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4. FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5. PWR: Light on when DC power on, else light off.
