Note:
POE splitter must be connected to POE switch, POE midspan or 48V~52V POE injector for proper operation.
Maximum output power of 12 watts (DC5V2.5A) when used with standard IEEE802.3af PoE switch (or 802.3af PoE injector).
Maximum output power of 20 watts (DC5V4A) when used with standard IEEE802.3at PoE switch (or 802.3at PoE injector).
Maximum output power of 20 watts (DC5V4A) when used with the 48V~52V non-standard passive PoE switches (or 48V~52V passive PoE injector)

RJ45 Female Input Port:
Compatible with IEEE 802.3af PoE Switch/in Power over Ethernet
Support 48V Unsolicited Power PoE Switch
Support 48V Unsolicited Power PoE Adapter

Specifications:
Complies with IEEE802.3af 5.2V2.4A 12.5W output
Compliant with IEEE802.3at output 5.2V4A 20W
Insulation: 2.5 kV.
Input Power: DC44~57V
Output Power: DC5.2V 4A
Data input and power port: RJ45 female (compatible with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power output port: USB Type-C
Data transfer rate: 10/100/1000Mbps/2.5G
Data pin: RJ45 pin 12345678
Devices will be detected before poe input
Power pin: compatible with 1/2 (+/-), 3/6 (-/+) or 4/5 (+), 7/8 (-).
Body size: 80 x 45 x 26 mm.
DC Cable Length: 85mm
RJ45 Modular Plug Cable Length: 155mm
Weight: 67g
Operating Temperature: -20℃~45℃
Storage Temperature: -30℃~70℃

Item Includes:

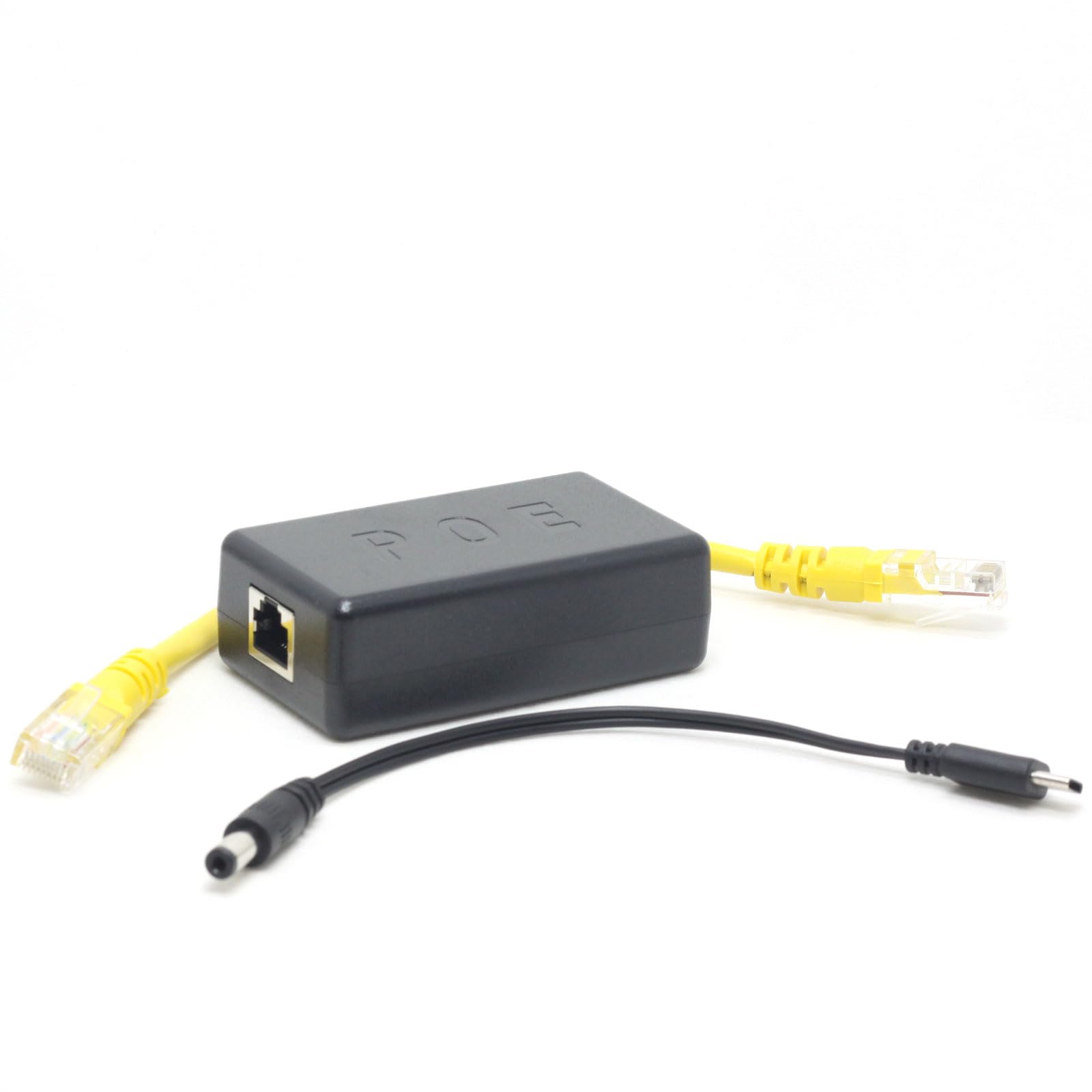

1 x 2.5G 5.2V4A Active PoE Splitter (USB Type-C)
1 x RJ45 Modular Plug Cable
1 x USB Type C DC Cable
