For DJI FPV Goggles V2 5.8G Analog Receiver Module Adapter Board Video Receiver, 5.8G Analog Receiver Module

DJI & GoPro Accessories

For DJI FPV Goggles V2 5.8G Analog Receiver Module Adapter Board Video Receiver, 5.8G Analog Receiver Module

Name: For DJI FPV Goggles V2 5.8G Analog Receiver Module Adapter Board Video Receiver, 5.8G Analog Receiver Module
Brand: Mira Sales
SKU: TBD06035484
Price: 10.99 GBP
Availability: InStock

£10.99

Option: 5.8G Analog Receiver Module

5.8G Analog Receiver Module

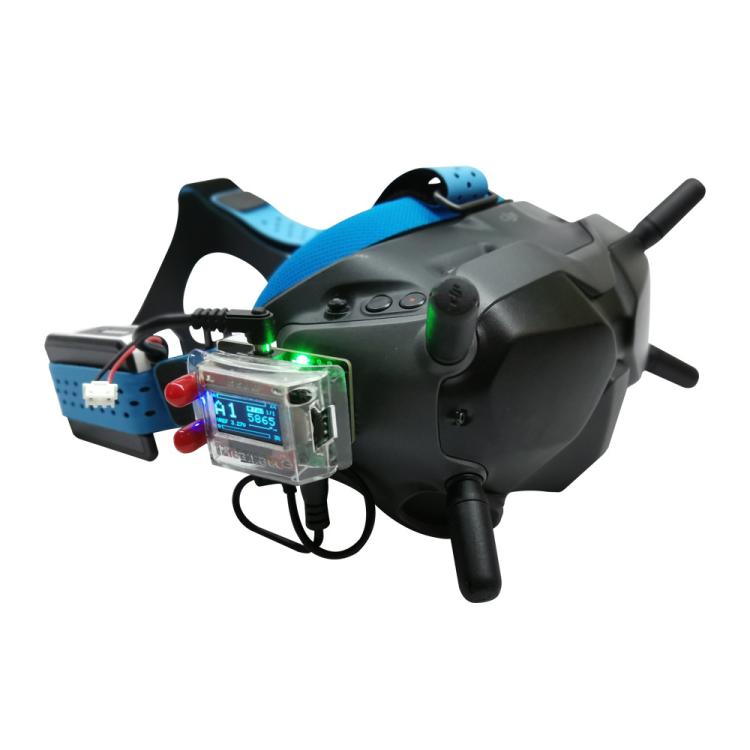

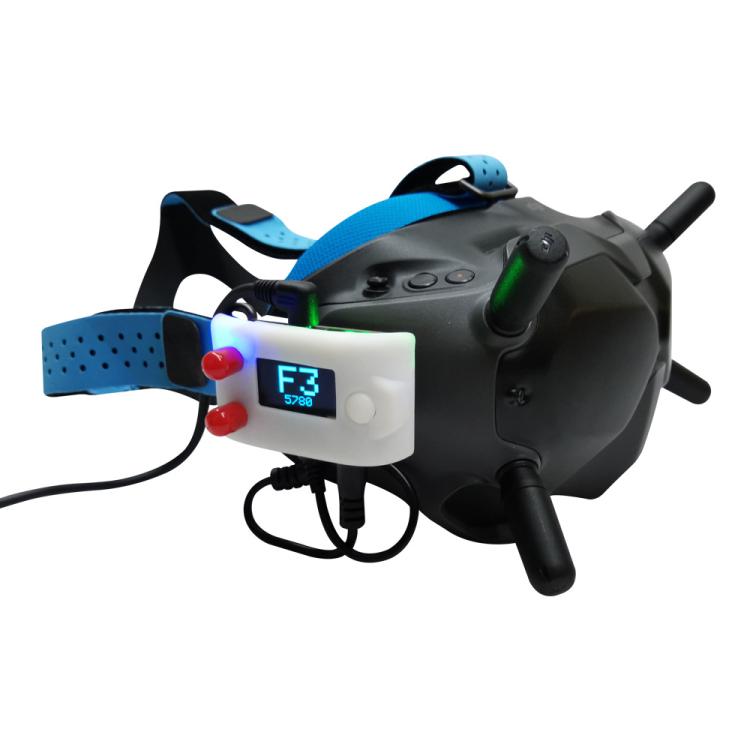

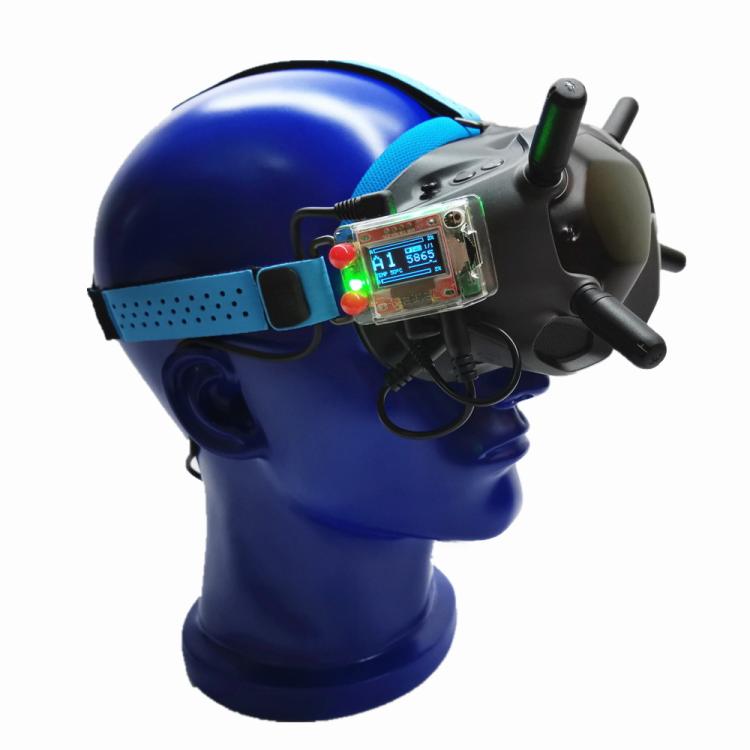

1. The 5.8G RX PORT 2.0 is designed to be fixed with the FPV goggles headband ring screw, and is completely non-destructively installed on the side of the DJI goggles, so that you can use Fat Shark or various third-party Fat Shark interface 5.8G receiver systems, Conveniently transfer video and audio signals to the high-quality screen of FPV flying glasses for viewing or recording
2. Dimensions: 48 x 28 x 12mm
3. Weight: 10g (excluding the adapter cable)

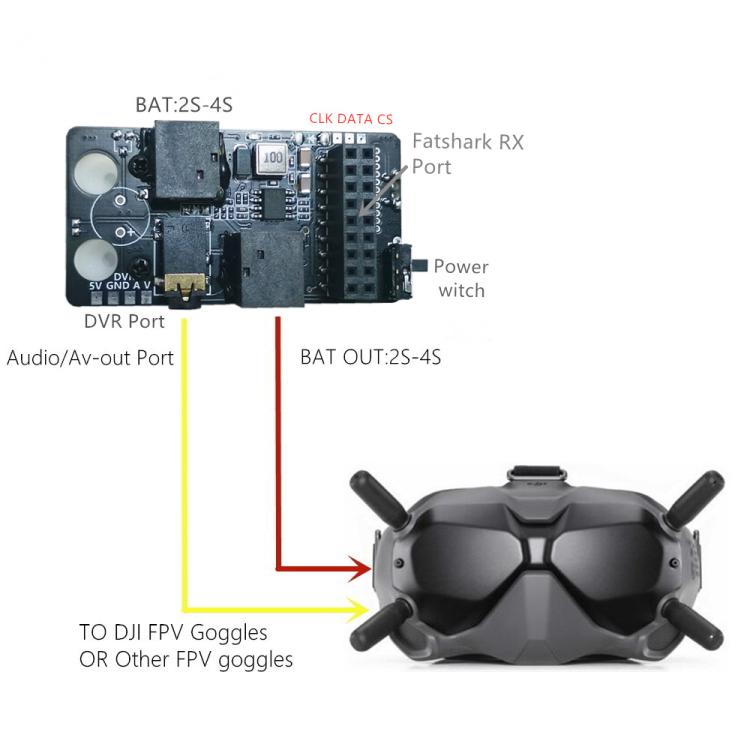

4. Power input: 2S-4S (DC5.5 x 2.1)
5. Internal voltage: 5V 3A (with pad for output)
6. Power output: 2S-4S (DC5.5 x 2.1)
7. Signal input: Standard Fat Shark receiver port
8. Including third-party receivers: Reaxacc Furious, etc.
9. Signal output: standard audio/video

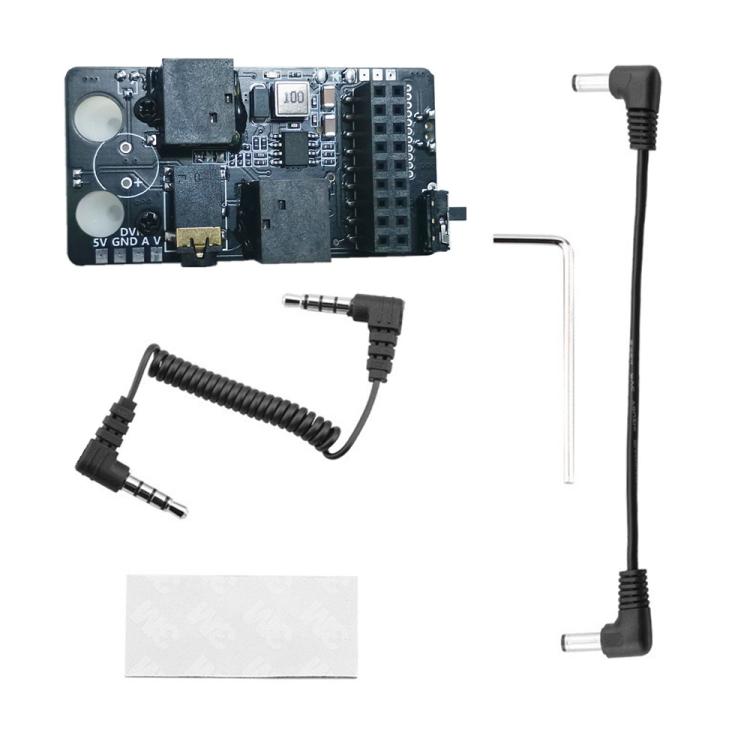

appendix:
Adapter mounting block and screw x 1
Audio and video cable x 1
Power cable x 1

Specification:

Package Weight

One Package Weight

0.05kgs / 0.12lb

One Package Size

8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch

Qty per Carton

500

Carton Weight

26.50kgs / 58.42lb

Carton Size

30cm * 50cm * 56.7cm / 11.81inch * 19.69inch * 22.32inch

Loading Container

20GP: 313 cartons * 500 pcs = 156500 pcs
40HQ: 727 cartons * 500 pcs = 363500 pcs
