* Application:

1) Switch from 3 Digital-Video (DVI) or Digital-Audio Video (HDMI) Sources

2) Digital TV, HDMI Flat Panel Monitors, HDTV

3) DVD Players, Satellite Receivers, Set-Top Boxes

4) Digital Projectors

5) Audio Video Receivers

6) Other HDMI-enabled devices

* Features:

1) 1 input and 3 outputs

2) Approved by HDMI Attached Lab

3) Fully support 1080P HDTV

4) HDCP compliant

5) Support DTS, Dobby, 7.1 Channel audio

6) Gold Fixing bolt for long cable

7) Plug in Play

8) Amplifier and Equalizer function for extending the HDMI cable

9) Rack mounting kit and wall mounting kit version

* Specification:

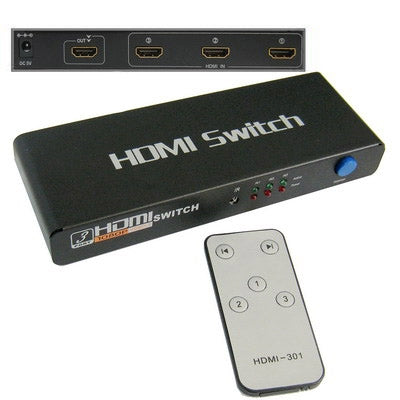

1) Product: 3 port HDMI Switch

2) HDMI Source input port: 3

3) Display device output port: 1

4) Source port connector: 19pin HDMI

5) Display device port connector: 19 pin HDMI

6) HDCP compliant: yes

7) Display device selection: push button or IR remote control

8) Device port LED: 3

9) Single link range: 1920*1200

10) Video bandwidth: up to 4.95GHz

11) Vertical frequency range: 60/85Hz

12) Power consumption (max): 5 watts

13) Operation temperature: 0℃ to 70℃

14) Power adapter: 5V 500mA

15) HDMI Ver1.3: 1.3

16) Dimension(mm): 180*65*25mm
