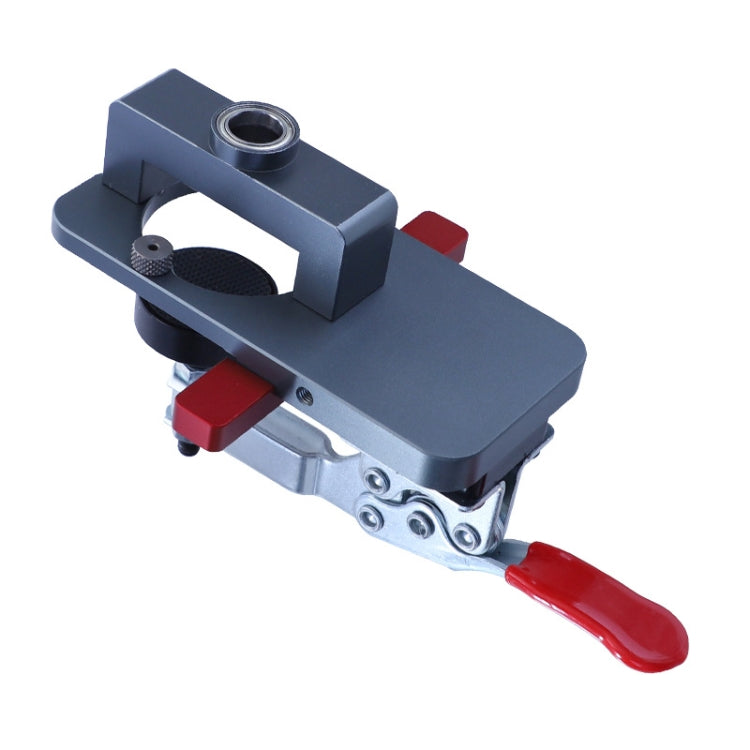

1. Aluminum alloy material, sperm manufacturing, beautiful and durable
2. Accurate positioning, easy to operate

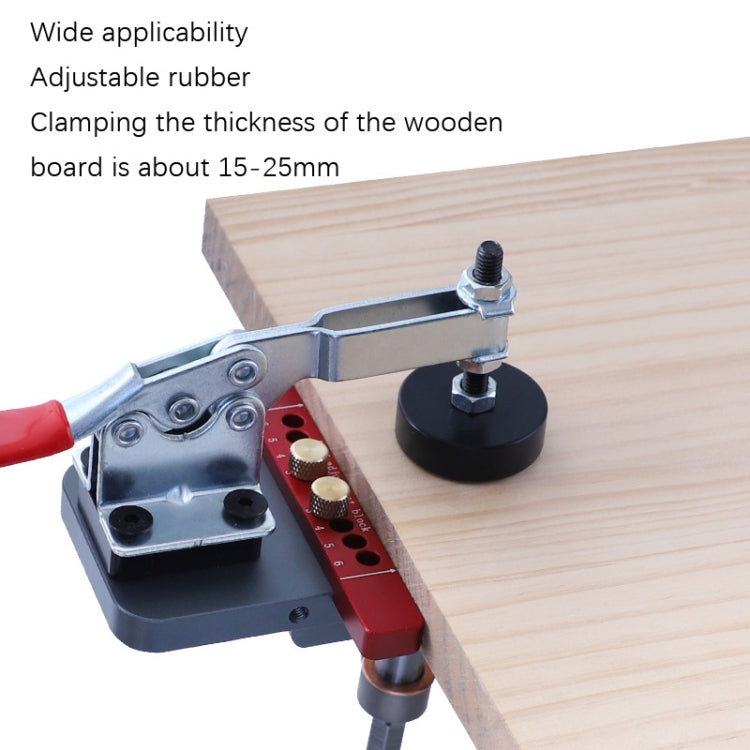

3. Applicability, adjustable rubber presses, clamping wood plate thickness ranges about 15-25mm

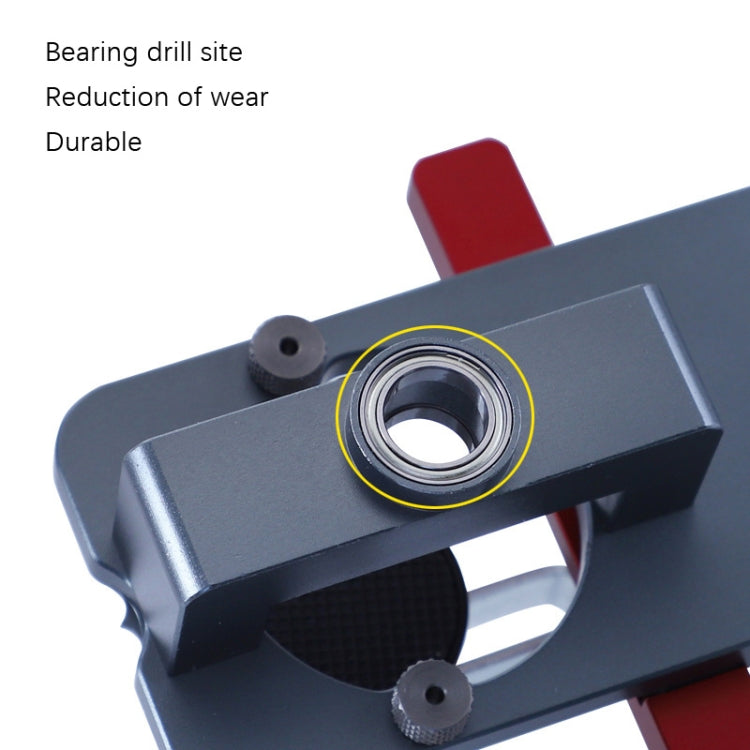

4. Bearing drilling sites, reduce wear, durable

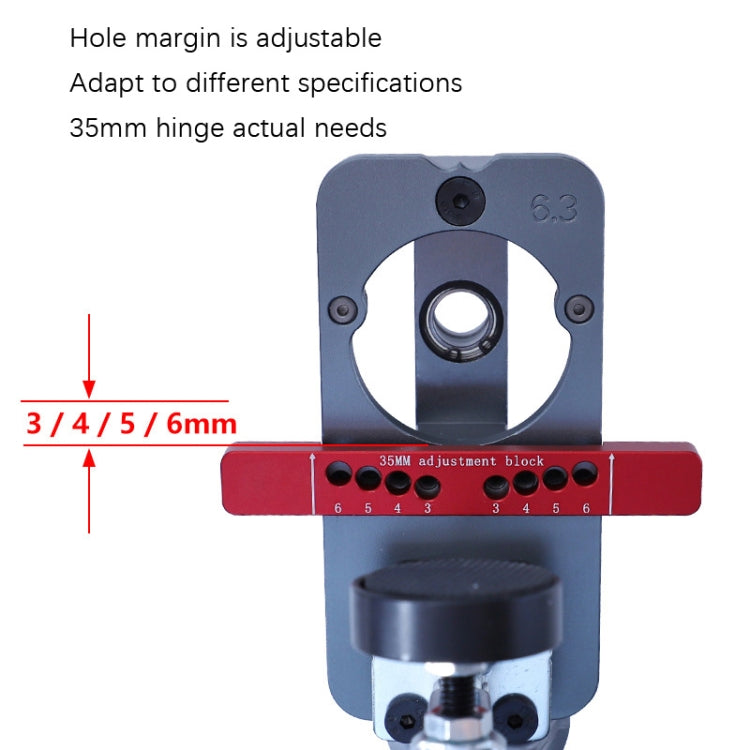

5. Adjustable in the hole margin, adapt to the actual needs of 35mm hinges of different specifications
6. Uses: 35mm hinge open hole installation, door panel hinge piping positioning, woodworking open auxiliary tool

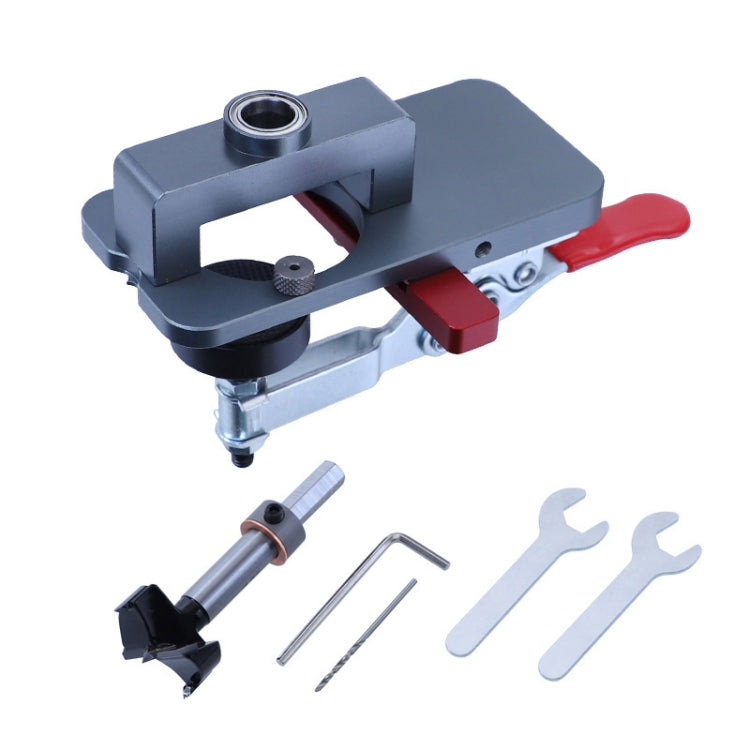

7. Packing list: hinge punch locator body X1, 35mm open cell X1, wrench x2, 2mm drill bit X1, hex wrench x1

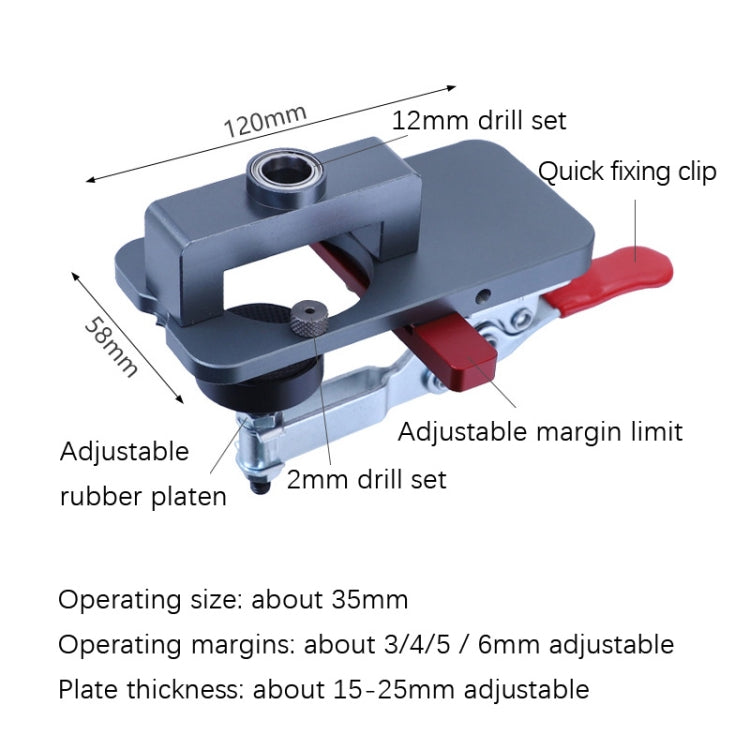

8. Operating size: about 35mm
9. Operating margins: about 3/4/5 / 6mm adjustable
10. Plate thickness: about 15-25mm adjustable
11. Size: about 12x5.8 cm
12. Weight: about 634 grams

Installation method:
1. Install a 35mm opener, adjust the perforation depth, normal 12-13mm, then lock the limit ring
2. Adjust the quick clip Black Block Fixed Size (Note: Tool adjustable fixed wooden board size is 15-25mm)
3. The punch is moved to the wooden planx, lock the quick clip
4. Electric drill holds the opening of the open hole, uniformly press the hole to 12-13mm depth, then hit the left and right side 2mm screw hole

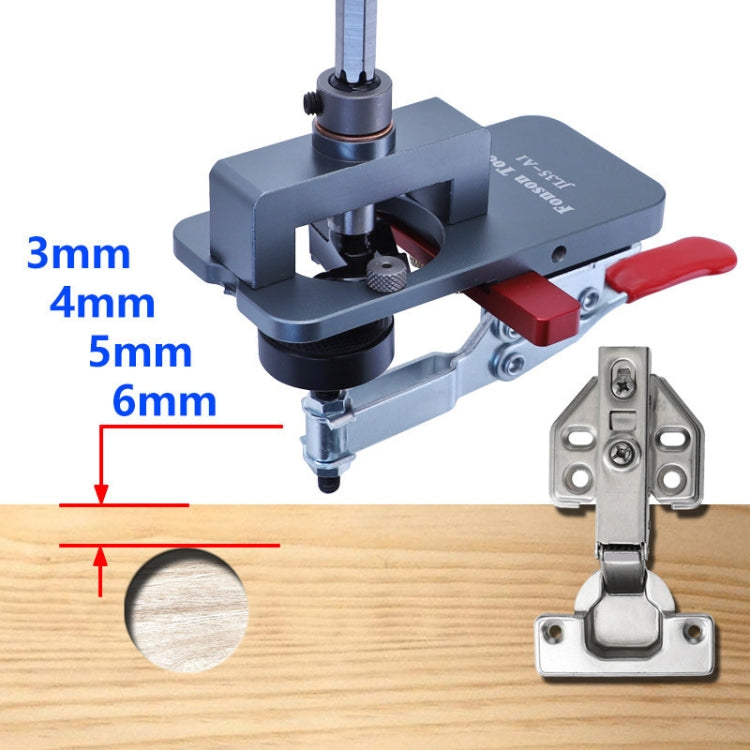

5. 35mm hole to the edge can be adjusted to 3, 4, 5, 6mm
6. Install 35mm hinge
