Main features:
1. Soldering metal thickness: Less than 0.1MM
2. Voltage input: AC 220V
3. Primary current: 2A~15A
4. Soldering current: 50A~800A (Related pulse range 1ms~19ms)
5. Soldering metal plate thickness: 0.1~0.15mm

Recharge:
1. Voltage recharge range: 4.2~15V
2. Current recharge range: 0~2A
3. Dimensions: 140x245x200 mm
4. Net weight: 4.3 kg

Specifications:
1. Advanced MCU current controller achieved precise micro-computer soldering.
2. Wider current range and single/double pulse soldering mode selection perform powerful function and high reliability.
3. Unique digital battery recharge function for constant current/constant voltage recharge.
4. MCU start control.
5. Touch digital control with temperature display has precise spot soldering.
6. Battery recharge display in LED 2 x 3 digits.
7. Short circuit protection in recharge output.

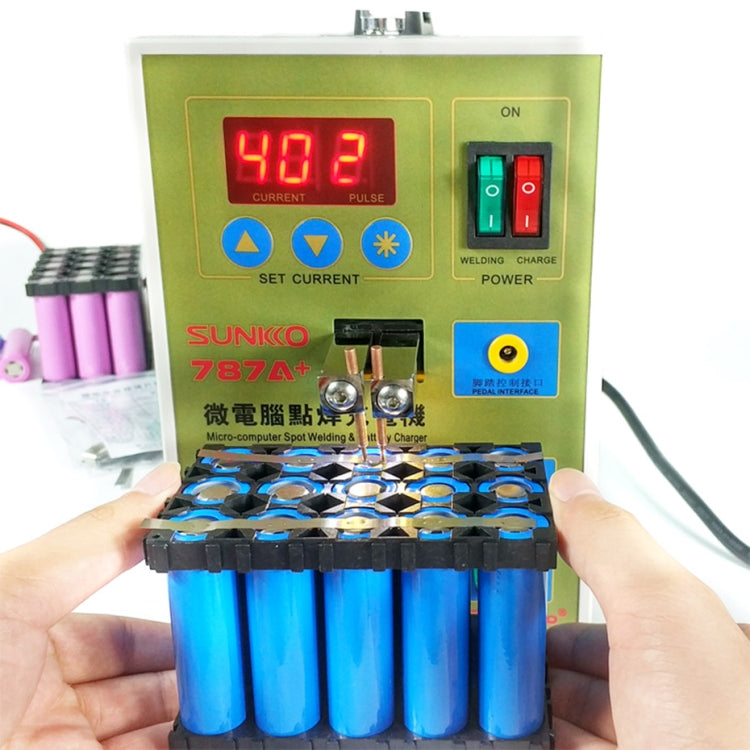

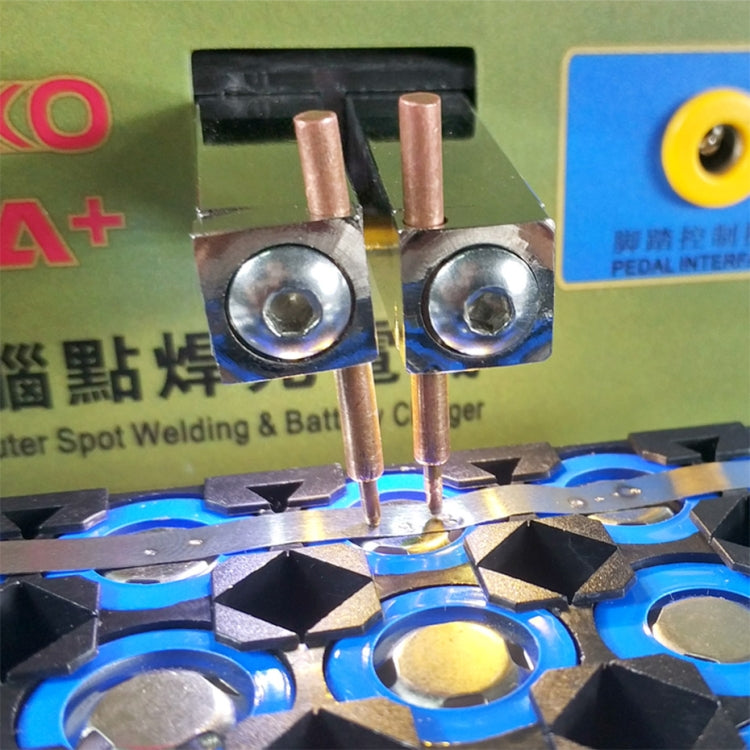

8. For assembly soldering all kinds of mobile battery, notebook battery.
9. Also for precision processing soldering metal parts.
