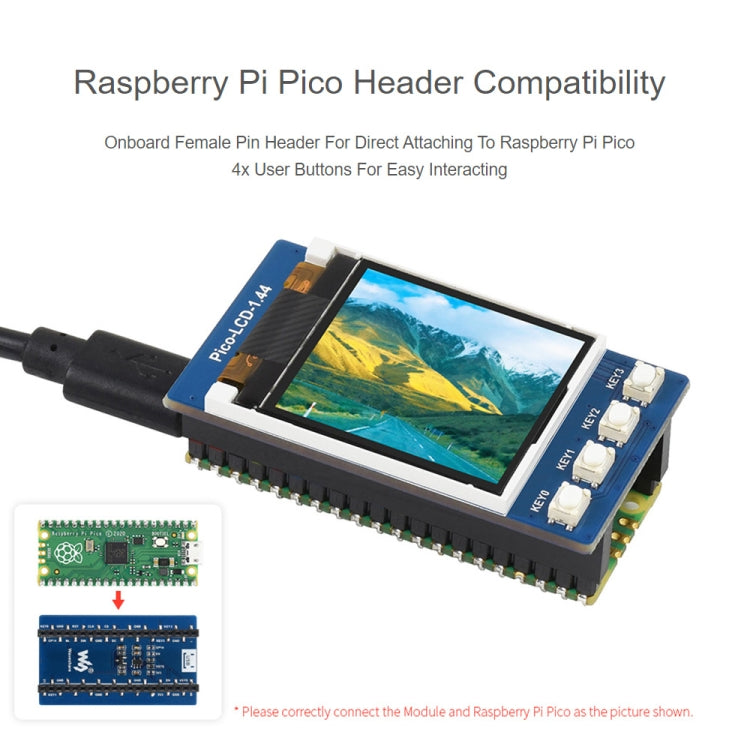

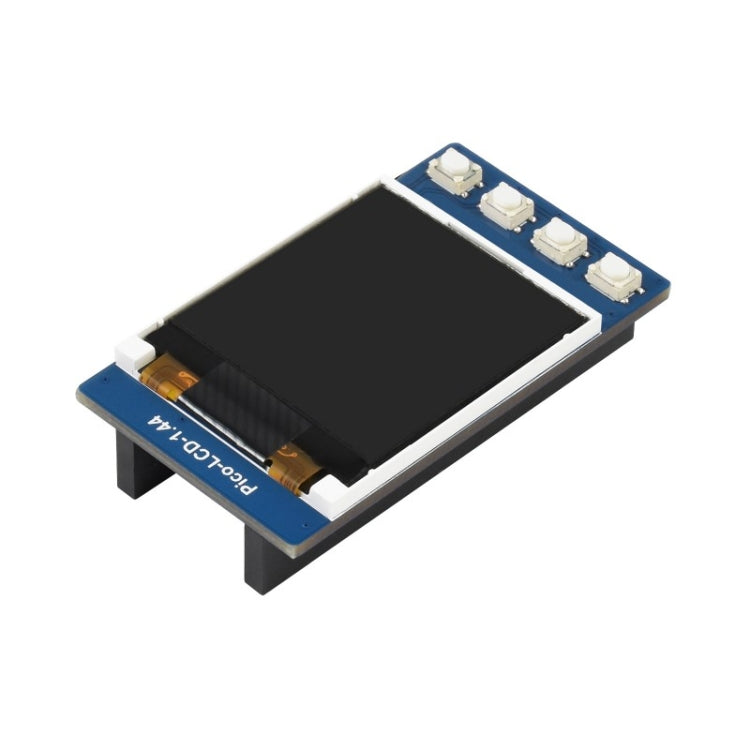

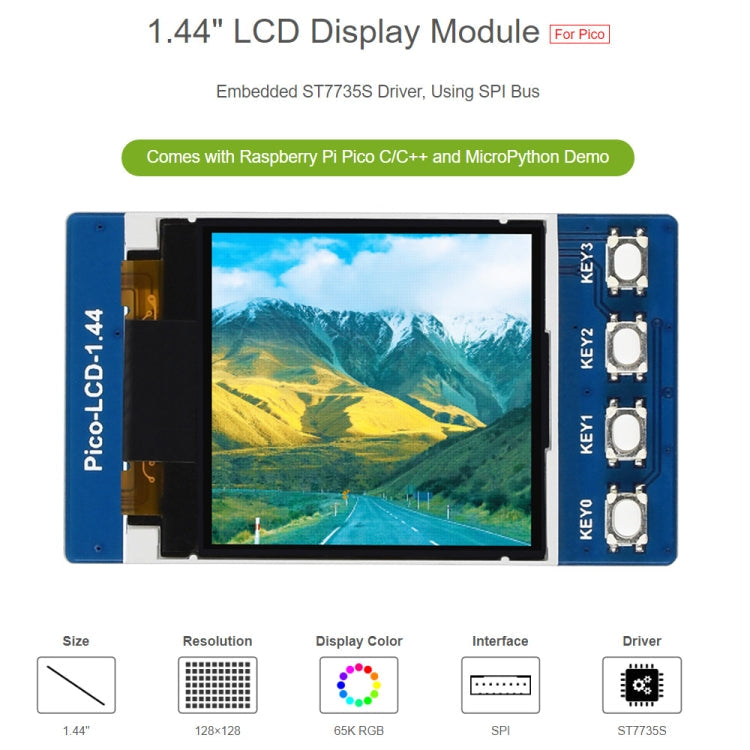

    WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface, 1.44 inch

    £6.99
    Prix ​​unitaire  par
    Features
    1. 128 x 128 resolution, 65K RGB colors, clear and colorful displaying effect
    2. SPI interface, requires minimal IO pins
    3. 4x user buttons for easy interacting
    4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

    Specification
    1. Operating voltage: 3.15V ~ 5V
    2. Communication Interface: 4-wire SPI
    3. Resolution: 128 x 128 pixels
    4. Display color: 65K colorful
    5. Communication BUS: SPI
    6. Display panel: TFT
    7. Display size: 25.50 x 26.50 mm
    8. Pixel size: 0.20 x 0.20 mm
    9. Driver: ST7735S
    10. Size: 52.0 x 30.0 mm


    Specification:
    Package Weight
    One Package Weight 0.03kgs / 0.06lb
    One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
    Qty per Carton 200
    Carton Weight 5.00kgs / 11.02lb
    Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch
    Loading Container 20GP: 939 cartons * 200 pcs = 187800 pcs
    40HQ: 2180 cartons * 200 pcs = 436000 pcs
