1) Easy to use: No need for settings

2) Distribution: Four identical HDMI outputs

3) Cascade: Large distribution achieved by stacking

4) HDCP compliant

5) HDMI 1080P compatible

* Introduction:

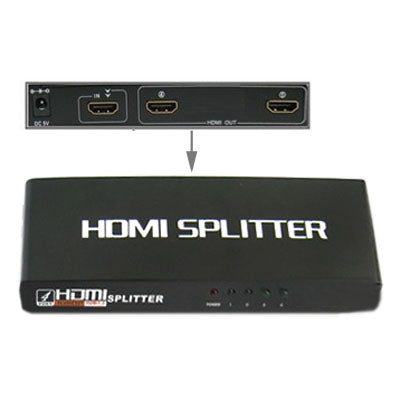

1) EDC 4 way HDMI splitter distributes the input HDMI signals to 4 identical HDMI outputs, These 4 outputs are synchronized.

2) Offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD, PS3 and Projector factory, space and security concerns data center control, distribution, conference room presentation, school and corporate training environments.

* Specifications:

1) Operating temperature range: -5 to +35C (-41 to +95F)

2) Operating humidity range: 5 to 90% RH (no condensation)

3) Video Amplifier Bandwidth: 2.5GHZ

4) Input Video Signal: 0.5-1.0 volts p-p

5) Input DDC Signal: 5 volts p-p (TTL)

6) Maximum Single Link Range: 1920 x 1200, 1080P

7) Video format supported:

***VGA: 640 x 480,800 x 600,1024 x 768,1280 x 1024

***DTV/HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080P

8) Output Video: HDMI1.3+HDCP1.0 / 1.1/ 1.2/ 1.2a/ 1.3

9) Vertical Frequency Range: 60Hz / 85Hz

10) Power Consumption: 5 Watts (max.)

11) Power Supply: 5V DC

12) Dimensions: 180*65*25mm
