Introduce:

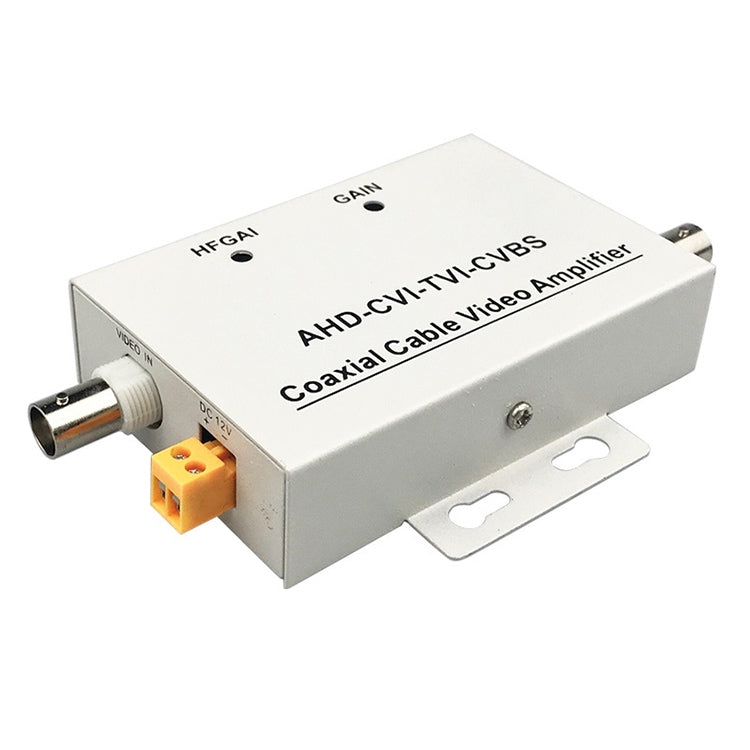

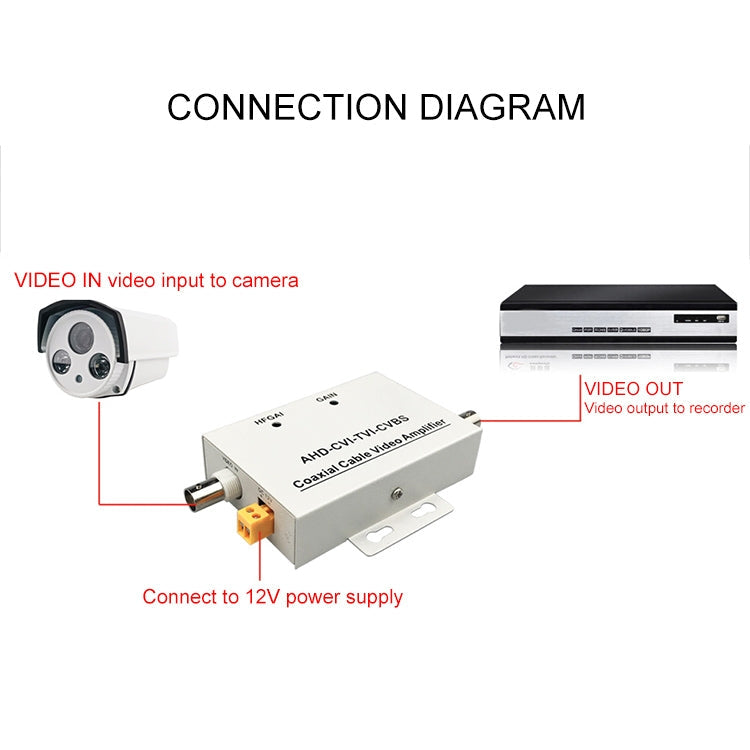

AD5301 is a video distribution amplifier, and can amplify video signal in a balanced manner, it is used in remote video signal transmission system to raise and balance signal loss and frequency distortior, and compatible with white / black and color video

Specification:

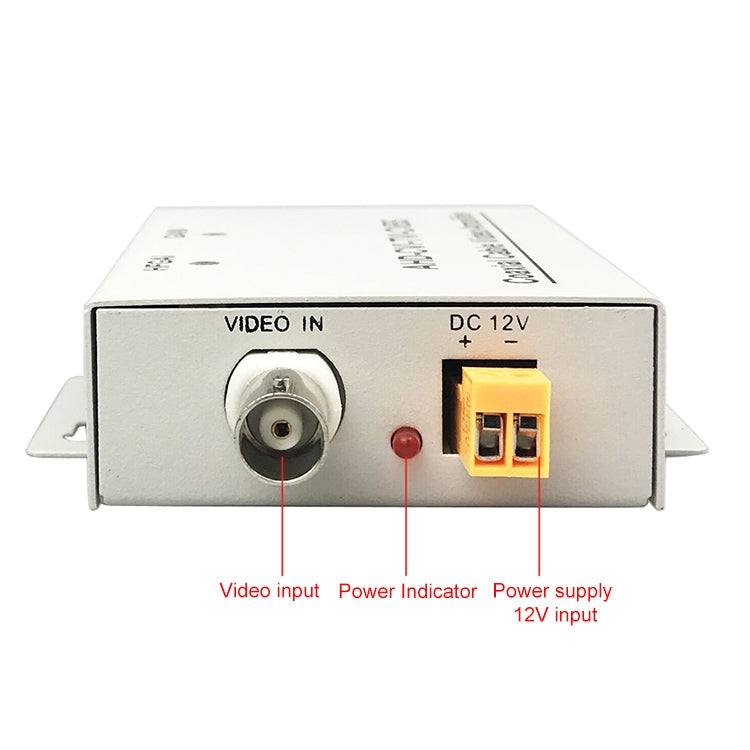

1) Input voltage: DC12V

2) Input / output load: 75ohm

3) Input connector: 1BNC

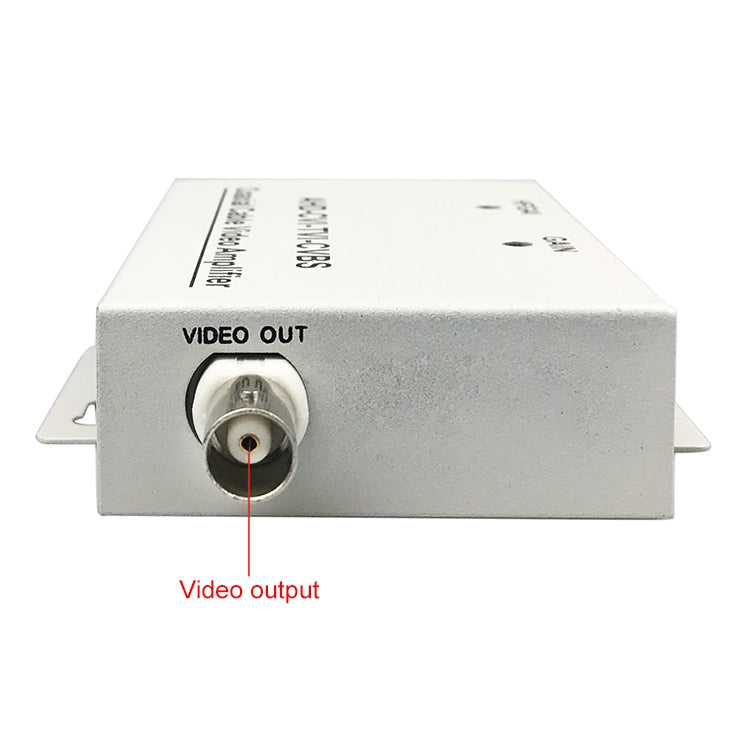

4) Output connector: 1BNC

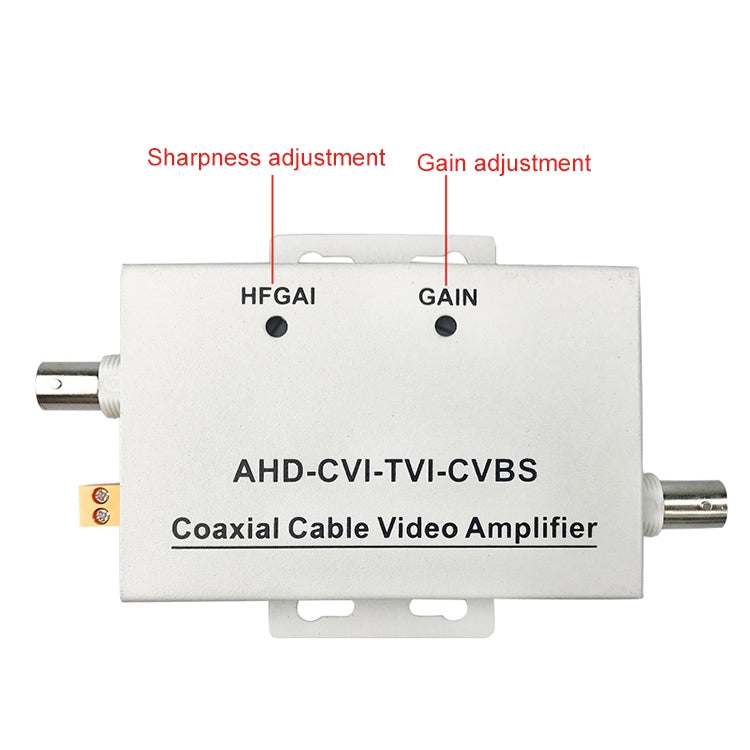

5) Frequency response: adjustable

6) Bandwidth(-3db): 10Hz to 7.5MHz

7) Gain: adjustable and max up to 6dB

8) Max output video voltage: 2.5V

9) Temperature: -10 to 45°C

10) Humidity: max up to 90%
