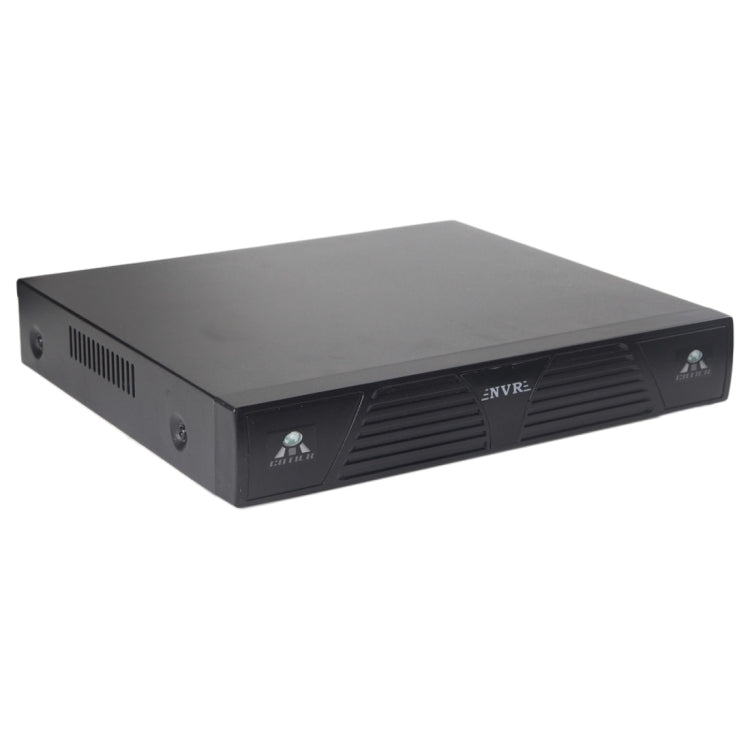

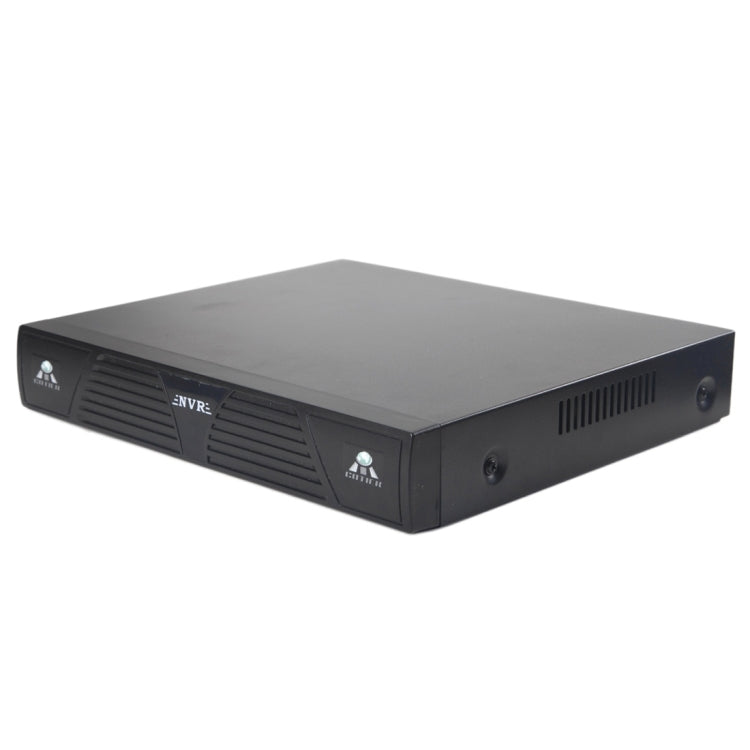

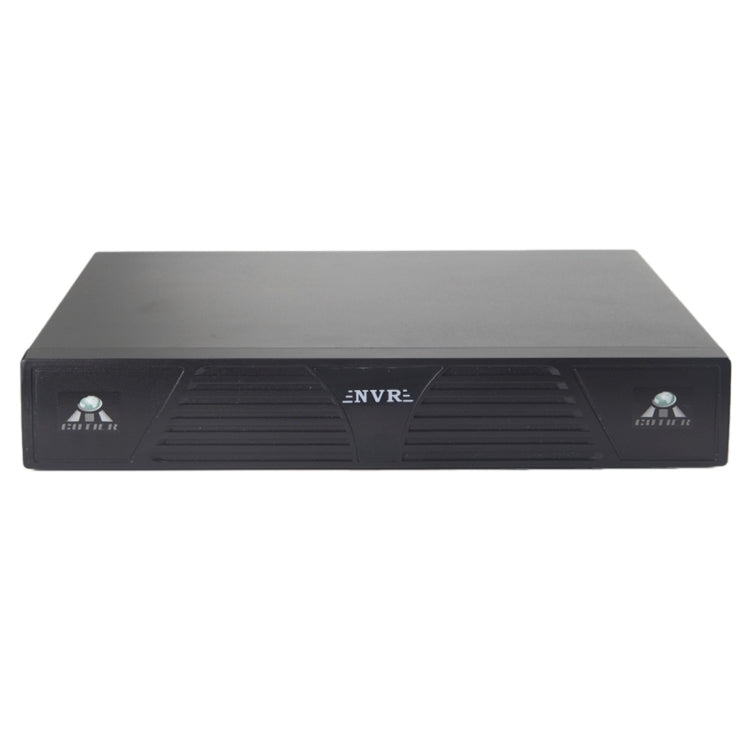

    N8/1U-M 8CH H.264 NVR Network HDD Digital Video Recorder, Support VGA / RJ45 NET / USB 2.0, N8/1U-M 8CH

    £23.99
    Unit price  per
    1. P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
    2. Support onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif, RTSP standard
    3. Support megapixel HD network video preview, storage and playback;
    4. Support search, playback and backup by event;
    5. Support all channel image display on one screen at same time, support 4 channels image display by mainstream, and 4 channels playback
    6. Support monitor PTZ on preview mode
    7. Offer CMS for free
    8. Image code control: Image code quality adjustable, variable bitstream and constant bitstream optional
    9. Dual stream: Each channel can set main stream and sub stream
    10. Video standard: 1080P(1920x1080)30fps/960P/(1280x960)/720P(1280x720)30fps
    11. Monitoring image quality: 1080P(1920x1080) / 960P/(1280x960)/720P(1280x720)
    12. Image motion detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
    13. Recording playback quality: Any 4ch playback simultaneously
    14. Region cover: Every channel can set 4 cover regions(IPC support)
    15. Recording mode: Support manual, auto, dynamic detection, alarm trigger record mode (Partly needs IPC support)
    16. Backup way: Support U disk, USB mobile HDD, USB DVD-RW network storage and backup
    17. Video Input:
    8 x (1280*720) +sub(640*360)+4Ref.+4Play 8CH 1.0MP IP Camera
    8 x (1280*960)+sub(640*480)+1Ref.+1Play 8CH 1.3MP IP Camera
    8 x (1920*1080)+sub(640*480)+2Ref.+1Play 8CH 2.0MP IP Camera
    8 x (1920*1080)+sub(720*576)+1Ref.+1Play 8CH 2.0MP IP Camera
    18. Audio Input: 8ch network audio input
    19. Compatible with main brand IP cameras: AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, Ambarella, HIKVISION, DAHUA, Histream, JXJ, TOPSEE, Launch, D-Link, Cotier, Clevele, HYVISION, WAPA etc.


    Specification:
    General
    Model N8/1U-M

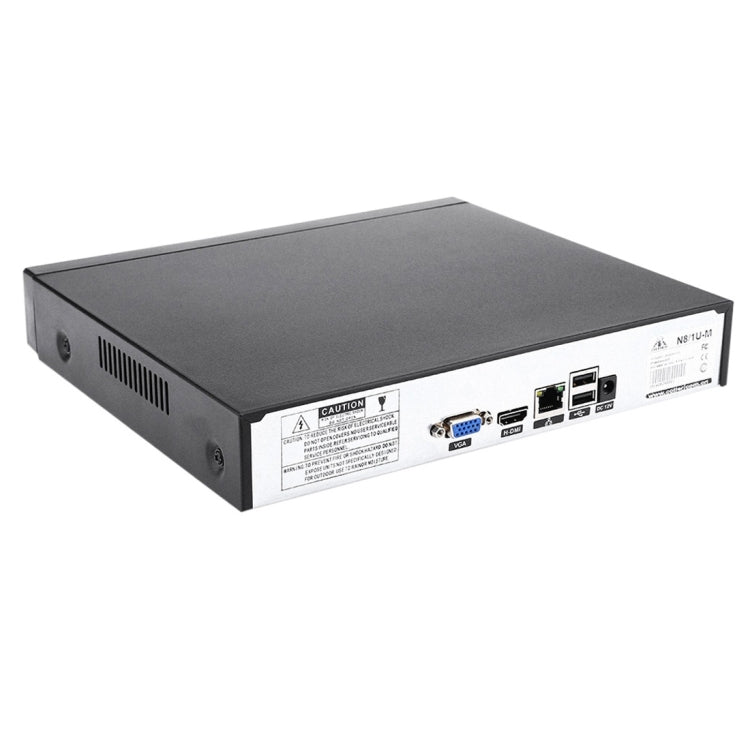

    Interface RJ45, VGA output, USB 2.0 x 2, DC Jack, HDMI
    NVR
    System Operating system: Embedded LINUX OS
    Image Code Control Image code quality adjustable, Variable bitstream and constant bitstream optional
    Dual Stream Support
    Video interface Video output: 1ch VGA and 1ch HDMI
    Audio Interface 1ch HDMI output
    Network RJ45, 10M/100M LAN port
    USB Port 2 USB 2.0 ports, one for Mouse
    HDD SATA HDD (not included), Max 4TB
    Mobile Surveillance Support ( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone
    Operation temperature -10 to 55 Degree Celsius
    Operation humidity 10-90 percent
    Power DC 12V 2.0A
    Power consumption <= 7W (without HDD)
    Dimensions
    Size 26*22*4.3cm
    Weight 1.5kg
    Package Include

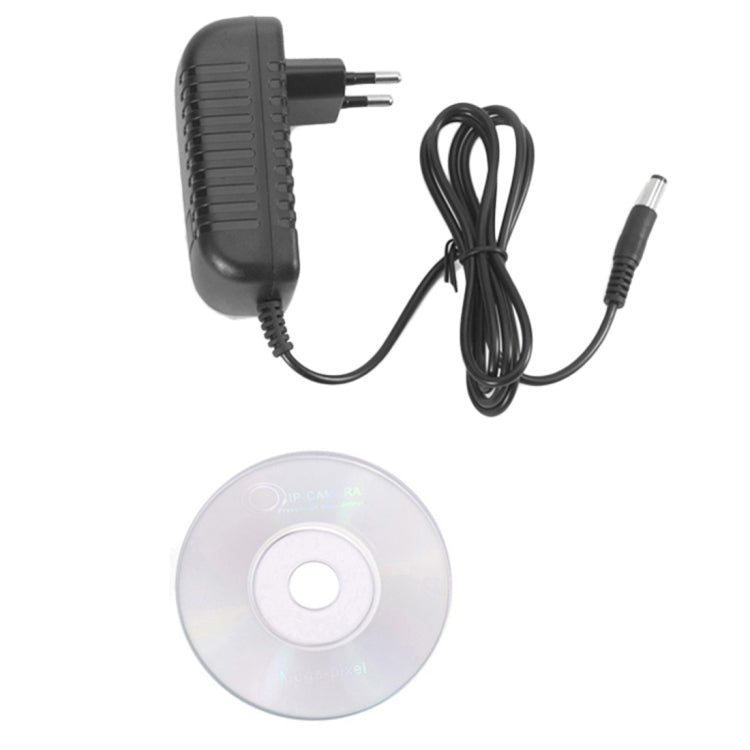

    Package Contents 1 x Power Adapter (US, UK, EU, AU Optional)
    1 x NVR
    1 x CD
    Package Weight
    One Package Weight 2.55kgs / 5.62lb
    One Package Size 36cm * 26cm * 9cm / 14.17inch * 10.24inch * 3.54inch
    Qty per Carton 10
    Carton Weight 25.20kgs / 55.56lb
    Carton Size 54cm * 47cm * 38cm / 21.26inch * 18.5inch * 14.96inch
    Loading Container 20GP: 276 cartons * 10 pcs = 2760 pcs
    40HQ: 641 cartons * 10 pcs = 6410 pcs
