1. Support 9 protocols
2. 9-36V power supply
3. Overvoltage protection
4. Ultra-low power consumption
5. WiFi connection
6. Display current and voltage

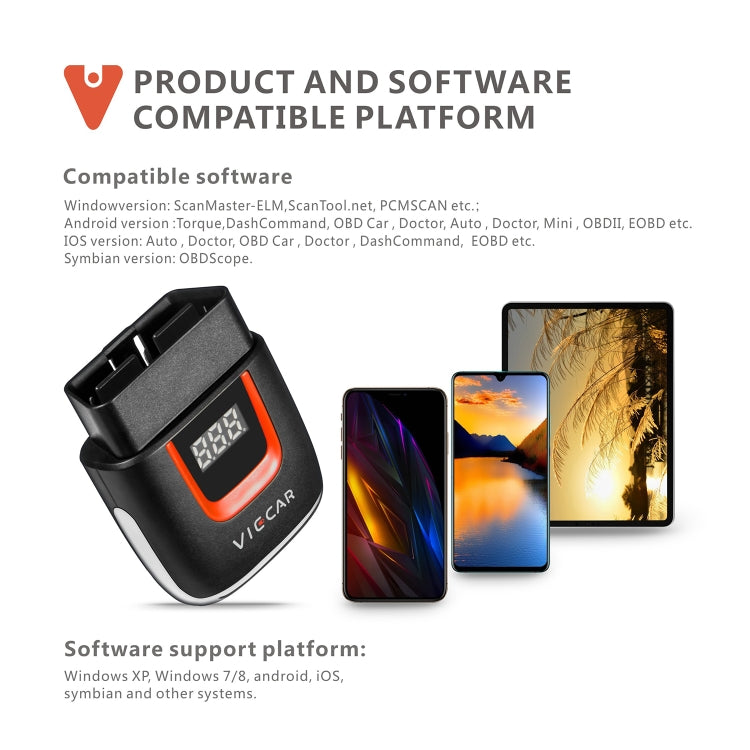

7. Support iOS / Android

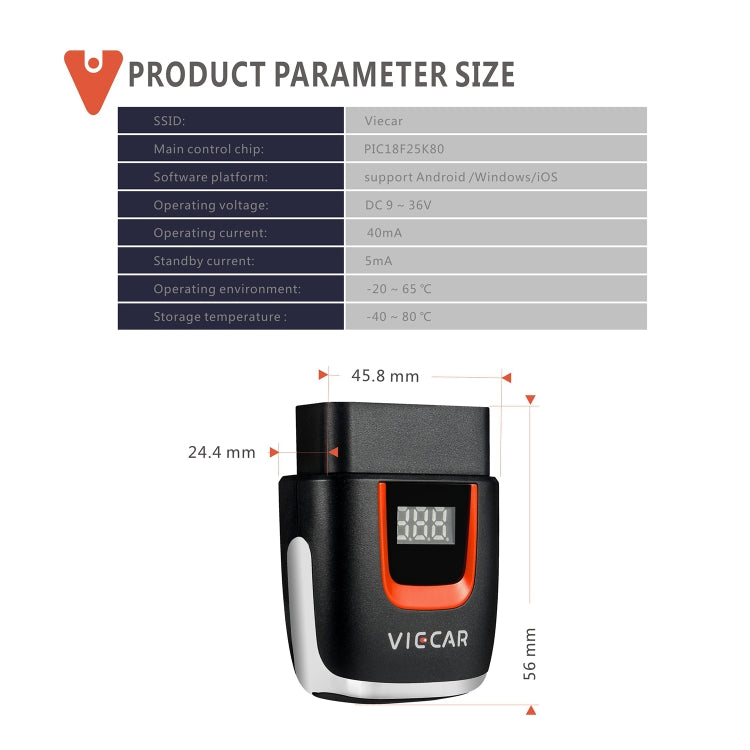

8. Parameters:
SSID: Viecar
IP: 192.168.0.10
Port: 35000
Main control chip: PIC18F25K80
Working voltage: DC 9-36V
Working current: 40mA
Standby current: 5mA
Version: V1.5
Operating environment: -20 to 65 degrees Celsius
Storage temperature: -40 to 80 degrees Celsius

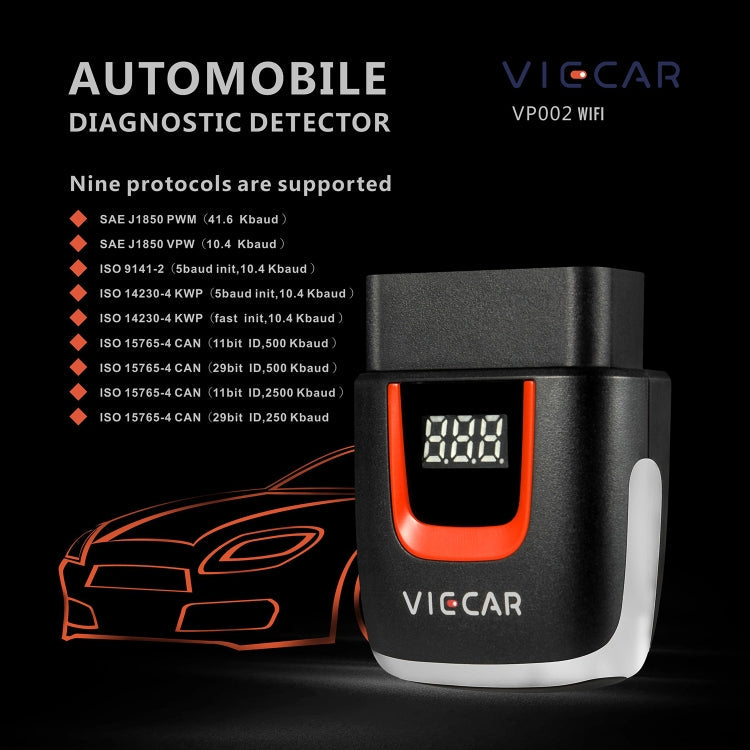

9. Supported protocols:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2 (5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
