    Waveshare Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision, Type B

    £19.99
    Unit price  per
    Features
    1. Raspberry Pi camera, supports all revisions of the Pi
    2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight
    3. Comes with infrared LED, supports night vision
    4. 5 megapixel OV5647 sensor
    5. Adjustable focus distance
    6. Camera specifications
    - CCD size: 1/4 inch
    - Aperture (F): 1.2
    - Focal Length: 8mm
    - Angle of View (diagonal): 40 degree
    - Sensor best resolution: 1080p
    7. 4 screw holes
    - Used for attachment
    - Provides 3.3V power output
    - Supports connecting infrared LED and/or fill flash LED
    8. Dimension: 31mm x32mm

    Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

    Note: The actual image pixels is 5MP, which depends on the sensor, so it doesnt matter that there is a 3MP silk mark on the camera.
    Package Contents
    1. RPi IR-CUT Camera (B) x1

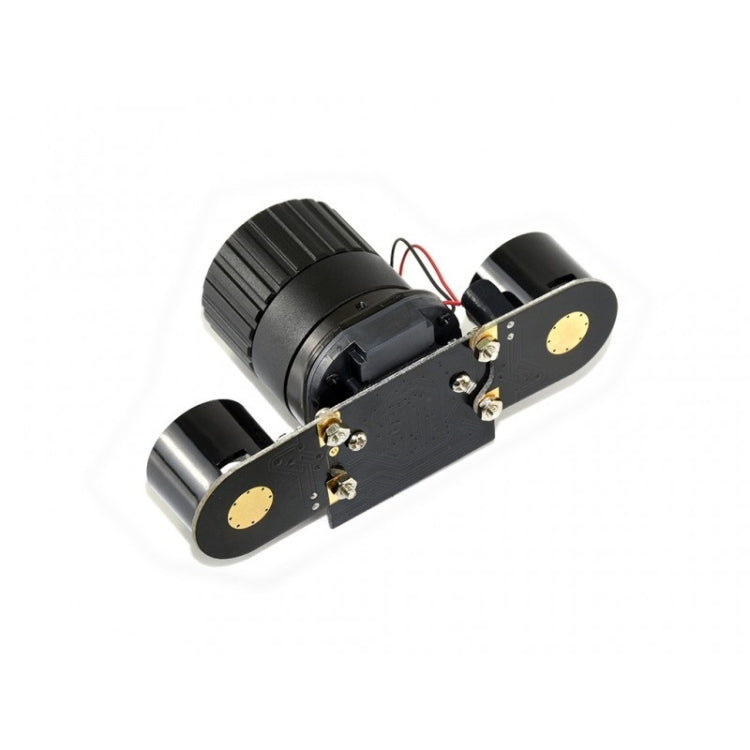

    2. Infrared LED Board (B) x2
    3. 15-pin FFC (opposite sides contact) x1


    Specification:
    Package Weight
    One Package Weight 0.07kgs / 0.14lb
    One Package Size 6cm * 6cm * 2cm / 2.36inch * 2.36inch * 0.79inch
    Qty per Carton 720
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 36cm * 36cm * 40cm / 14.17inch * 14.17inch * 15.75inch
    Loading Container 20GP: 514 cartons * 720 pcs = 370080 pcs
    40HQ: 1194 cartons * 720 pcs = 859680 pcs
